NPM0231200

NPM0231200

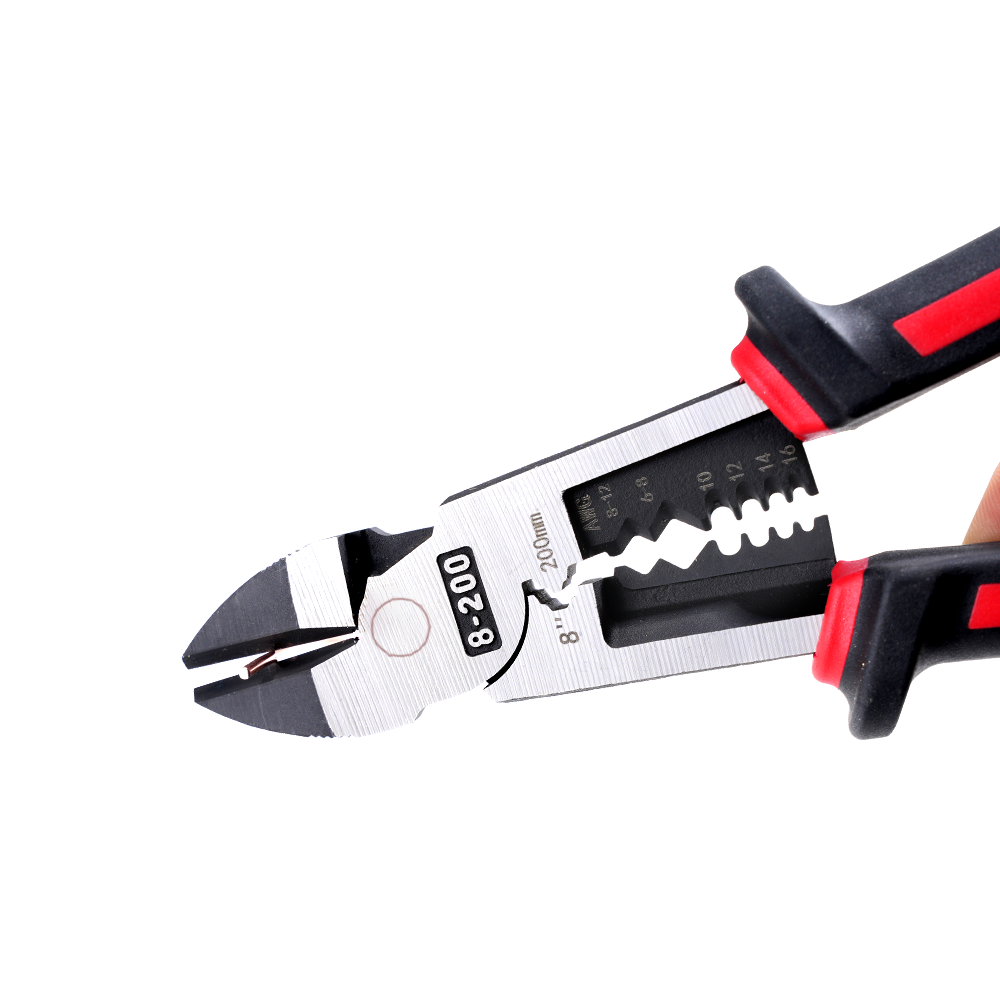

Multi-Function Combination Pliers

5-in-1 Multifunctional Tool

  • Firmly hold flat and round materials

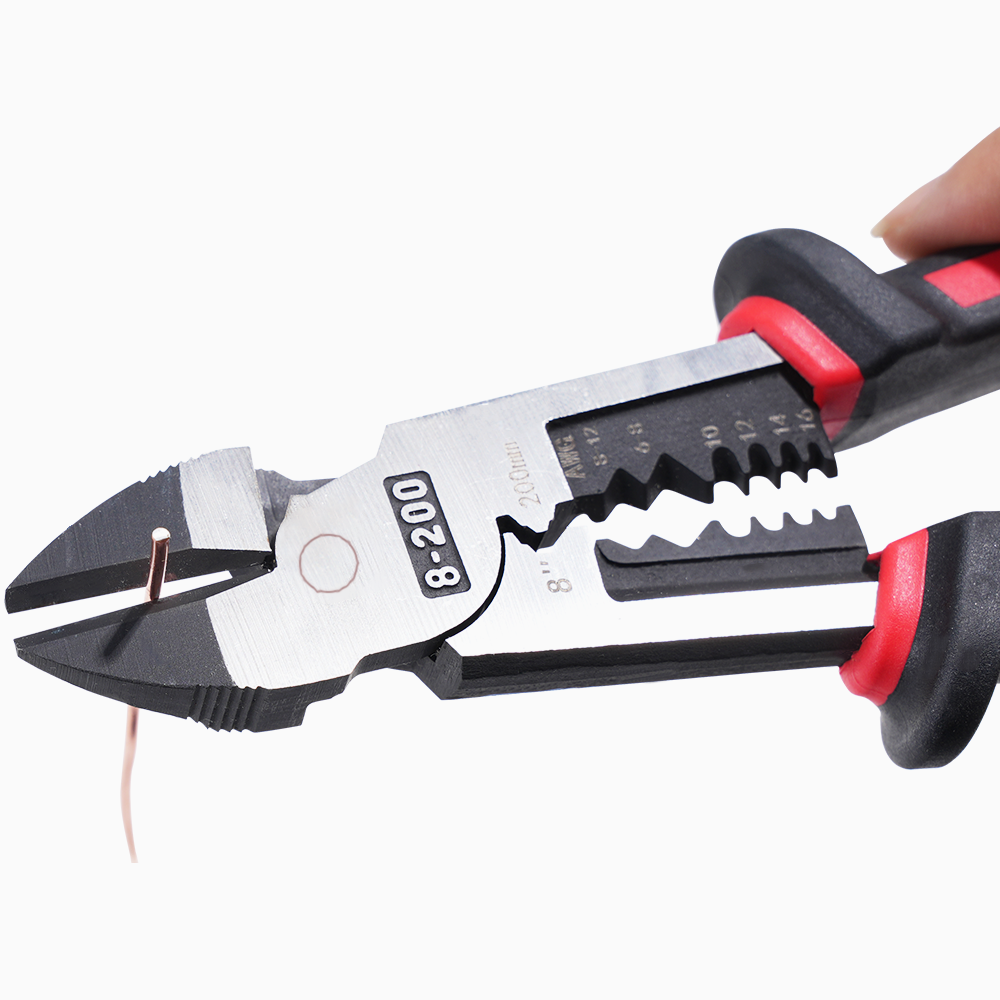

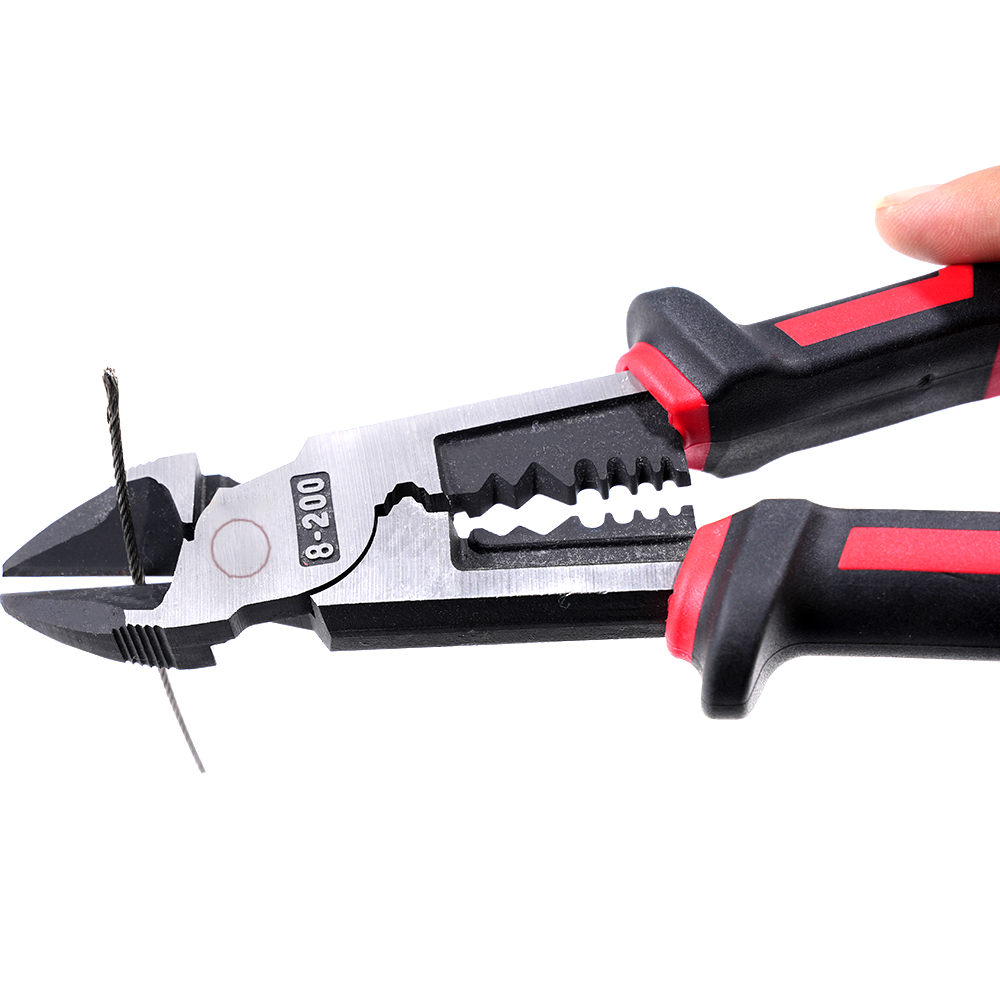

  • Easily cut soft, medium-hard and hard wires
  • Smoothly threads and pulls steel wires
  • Stripping holes remove insulation without damage

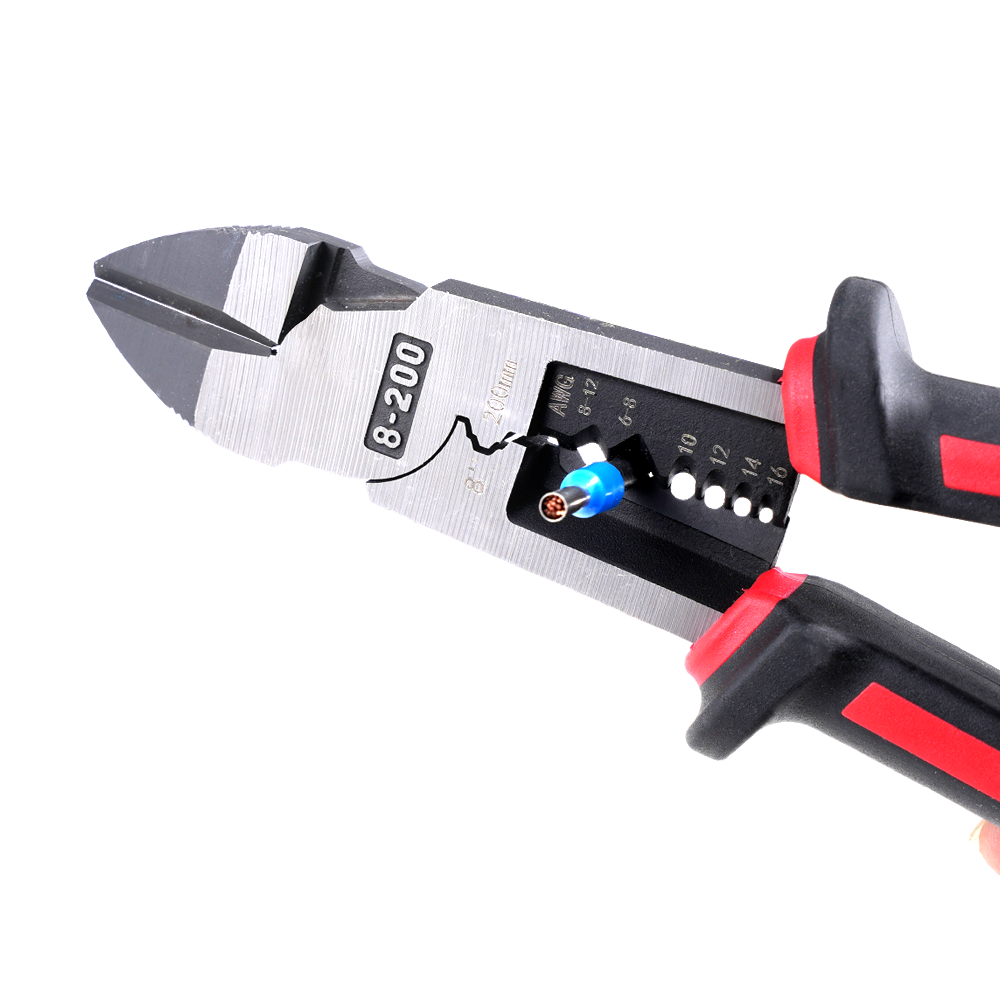

  • Easily crimp terminals
  • Cutting edge hardness approx. 62 HRC, the overall hardness approx. 46HRC
  • Forged, multi-stage oil-quenched

*options:

  • Material: 55# steel
  • Surface treatment: phosphating or electroplating

Description

Item No. Length(mm) Surface treatment Handle Cutting range Stripping Range Crimping Range Weight(g)
Medium-hard Hard mm2 AWG mm2
NPM0231200 200 Phosphating TPR 3mm 2.5mm 1.5 /2.5/ 4.0/

6.0 4.0-14.0

16/14/12/10

V12-6

1.5-6.0 300
